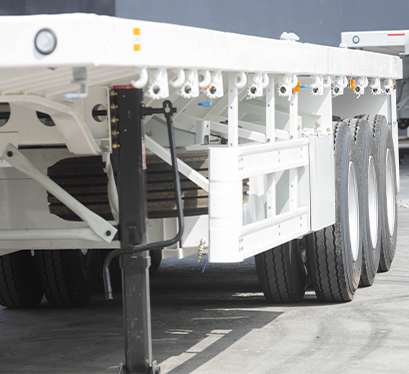

Trailer Type: 40′ Flatbed semi-trailer with tri-axle
Trailer Model: ZJV9403PBTZ
Parameter:
Overall Dimension (mm): LxWxH: 12400×2500×H (12.42.5H meters)
Kingpin Setting (mm): 1100 King Pin position, from the face of front bolster (1100mm from
the front bolster to the kingpin)
Fifth Wheel Height (mm): According to the tractor
Axle Space (mm): 7450 + 1310 + 1310
Tare Weight (KG): 6900 (approximately 6.9 tons)
Payload (KG): 36000 (approximately 36 tons)
G.V.W.R (KG): 43000 (total weight of the trailer and cargo is 43 tons)
Fabric Structure:
Main Beam (mm): Q355 500mm height, submerged arc welded “I” beam.
Flange and Web (mm): Q355 tensile steel, thickness 14/6/16 (upper flange 14mm, middle
web 6mm, lower flange 16mm)
Side Rail: Q550, 160mm “C” type channel
Floor: 2.75mm checker plate
Cross Member: “W” cross member
Lock: 12 retractable twist locks
Landing Gear: JOST AC300, operation crank on LHS (left-hand side)
OEM Components:
Kingpin: 2″, exchangeable, 1 piece, Brand: JOST (Brand: JOST, 50#)
Brake System: 30/30 type on each axle, WABCO brake valve
ABS: None
Suspension: Mechanical suspension with 7 leaf springs
Axle: 3-axle, square, 13T capacity/axle, Brand: FW
Tire: 12R22.5-18PR, Brand: LING LONG, equipped with 13 per chassis
Rim: 9.0-22.5 steel rim, 10-hole, equipped with 13 per chassis
Toolbox: 1 piece, 1.0M long steel box, installed on LHS (left-hand side)
Spare Tire Carrier: 2 pieces, colour in Grey White
Fuel Tank: 1000L
Electrical System: 24V, ISO1185 standard, modular harness, LED lamps
Painting:
Powder Coating: E-coat primer and Powder coating topcoat
Colour: According to customer requirement
